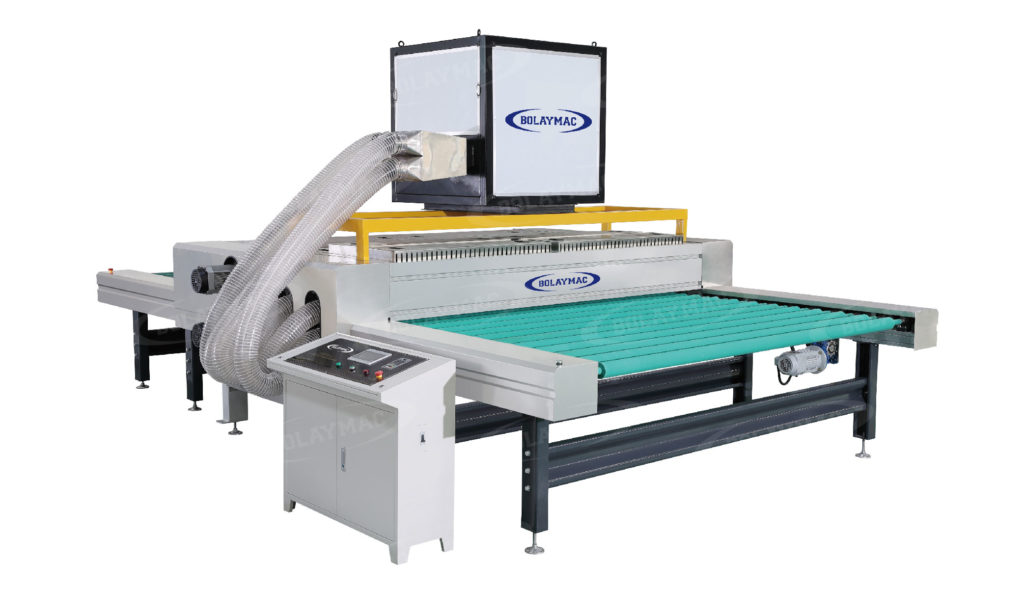

Automatic Horizontal Glass Washing and Drying Machine

Automatic Horizontal Glass Washing and Drying Machine

The working flow of glass washing machine is after the flat glass is placed on the loading section, the glass is transferred by the drive roller into the pre-washing section, and it is being washed by sprayed water by the upper nozzle, and then glass enters the washing section, brushed with pure water. Afterward, glass enters the air drying section for drying by a special high-pressure blowing, to achieve a drying and cleaning effect.

Automatic horizontal glass washing and drying machine adopts horizontal structure, which is suitable for washing and air-drying all kinds of flat glass. The mechanical structure is composed of a loading section, a washing section, an air-drying section, and an unloading section.

A good glass washer can perfect your glass tempering.

Technical Features of Automatic Horizontal Glass Washing and Drying Machine

• Pre-washing system is equipped with high-pressure water jetting the glass surface to improve the cleaning effect.
• Three pairs of brushes for washing, 2or 3 pairs of hard brushes (1 Nos of soft brush mounted on the top in washing section for washing Low-e glass, which to protect the coated layer on the top of glass)
• Air drying section adopts 2 or 3 sets of high-efficiency air knives with stainless steel and aluminum profile combinations.
• Rubber roller transmission adopts digital frequency conversion and variable speed adjustment, and its performance is stable, reliable, and durable.
• The whole machine cover and water tank are made of stainless steel.
• Machine body entirely maximum lifting can reach 450mm, easy for maintenance and inspection.
• The glass washer can adopt a PLC control system as optional, which is convenient to connect with a high-speed edging machine or automatic loader.

Technical Parameter of Automatic Horizontal Glass Washing and Drying Machine

Scope of Application

Suitable for architectural glass, insulated glass, home appliance glass, and LOW-E Glass.

Video of Automatic Horizontal Glass Washing and Drying Machine
